开始
--------------------------------------------------------------------------------
在网络上,看到有SQL Server 2000和SQL Server 2005 的存储过程加密和解密的方法,后来分析了其中的代码,发现它们的原理都是一样的。后来自己根据实际的应用环境,编写了两个存储过程,一个加密存储过程(sp_EncryptObject),和一个解密存储过程(sp_EncryptObject),它们可以应用于SQL Server中的储过程,函数,视图,以及触发器。
感觉这两个存储过程蛮有意思的,拿来与大家分享;如果你看过类似的,就当作重温一下也好。
用于加密的存储过程 (sp_EncryptObject) :
--------------------------------------------------------------------------------
存储过程(sp_EncryptObject)加密的方法是在存储过程,函数,视图的“As”位置前加上“with encryption”;如果是触发器,就在“for”位置前加“with encryption”。
如果触发器是{ AFTER | INSTEAD OF} 需要修改下面代码"For"位置:
复制代码 代码如下:www.mb5u.com

if objectproperty(object_id(@Object),'ExecIsAfterTrigger')=0 set @Replace='As' ; else set @Replace='For ';

存储过程完成代码:
复制代码 代码如下:www.mb5u.com

Use master
Go
if object_ID('[sp_EncryptObject]') is not null
Drop Procedure [sp_EncryptObject]
Go
create procedure sp_EncryptObject
(
@Object sysname='All'
)
as
/*
当@Object=All的时候,对所有的函数,存储过程,视图和触发器进行加密
调用方法:
. Execute sp_EncryptObject 'All'
. Execute sp_EncryptObject 'ObjectName'
*/
begin
set nocount on
if @Object <>'All'
begin
if not exists(select 1 from sys.objects a where a.object_id=object_id(@Object) And a.type in('P','V','TR','FN','IF','TF'))
begin
--SQL Server 2008
raiserror 50001 N'无效的加密对象!加密对象必须是函数,存储过程,视图或触发器。'
--SQL Server 2012
--throw 50001, N'无效的加密对象!加密对象必须是函数,存储过程,视图或触发器。',1
return
end
if exists(select 1 from sys.sql_modules a where a.object_id=object_id(@Object) and a.definition is null)
begin
--SQL Server 2008
raiserror 50001 N'对象已经加密!'
--SQL Server 2012
--throw 50001, N'对象已经加密!',1
return
end
end
declare @sql nvarchar(max),@C1 nchar(1),@C2 nchar(1),@type nvarchar(50),@Replace nvarchar(50)
set @C1=nchar(13)
set @C2=nchar(10)
declare cur_Object
cursor for
select object_name(a.object_id) As ObjectName,a.definition
from sys.sql_modules a
inner join sys.objects b on b.object_id=a.object_id
and b.is_ms_shipped=0
and not exists(select 1
from sys.extended_properties x
where x.major_id=b.object_id
and x.minor_id=0
and x.class=1
and x.name='microsoft_database_tools_support'
)
where b.type in('P','V','TR','FN','IF','TF')
and (b.name=@Object or @Object='All')
and b.name <>'sp_EncryptObject'
and a.definition is not null
order by Case
when b.type ='V' then 1
when b.type ='TR' then 2
when b.type in('FN','IF','TF') then 3
else 4 end,b.create_date,b.object_id
open cur_Object
fetch next from cur_Object into @Object,@sql
while @@fetch_status=0
begin
Begin Try
if objectproperty(object_id(@Object),'ExecIsAfterTrigger')=0 set @Replace='As' ; else set @Replace='For ';
if (patindex('%'+@C1+@C2+@Replace+@C1+@C2+'%',@sql)>0)
begin
set @sql=Replace(@sql,@C1+@C2+@Replace+@C1+@C2,@C1+@C2+'With Encryption'+@C1+@C2+@Replace+@C1+@C2)
end
else if(patindex('%'+@C1+@Replace+@C1+'%',@sql)>0)
begin
set @sql=Replace(@sql,@C1+@Replace+@C1,@C1+'With Encryption'+@C1+@Replace+@C1)
end
else if(patindex('%'+@C2+@Replace+@C2+'%',@sql)>0)
begin
set @sql=Replace(@sql,@C2+@Replace+@C2,@C2+'With Encryption'+@C2+@Replace+@C2)
end
else if(patindex('%'+@C2+@Replace+@C1+'%',@sql)>0)
begin
set @sql=Replace(@sql,@C2+@Replace+@C1,@C1+'With Encryption'+@C2+@Replace+@C1)
end
else if(patindex('%'+@C1+@C2+@Replace+'%',@sql)>0)
begin
set @sql=Replace(@sql,@C1+@C2+@Replace,@C1+@C2+'With Encryption'+@C1+@C2+@Replace)
end
else if(patindex('%'+@C1+@Replace+'%',@sql)>0)
begin
set @sql=Replace(@sql,@C1+@Replace,@C1+'With Encryption'+@C1+@Replace)
end
else if(patindex('%'+@C2+@Replace+'%',@sql)>0)
begin
set @sql=Replace(@sql,@C2+@Replace,@C2+'With Encryption'+@C2+@Replace)
end
set @type =
case
when object_id(@Object,'P')>0 then 'Proc'
when object_id(@Object,'V')>0 then 'View'
when object_id(@Object,'TR')>0 then 'Trigger'
when object_id(@Object,'FN')>0 or object_id(@Object,'IF')>0 or object_id(@Object,'TF')>0 then 'Function'
end
set @sql=Replace(@sql,'Create '+@type,'Alter '+@type)
Begin Transaction
exec(@sql)
print N'已完成加密对象('+@type+'):'+@Object
Commit Transaction
End Try
Begin Catch
Declare @Error nvarchar(2047)
Set @Error='Object: '+@Object+@C1+@C2+'Error: '+Error_message()
Rollback Transaction
print @Error
print @sql
End Catch
fetch next from cur_Object into @Object,@sql
end
close cur_Object
deallocate cur_Object
end
Go
exec sp_ms_marksystemobject 'sp_EncryptObject' --标识为系统对象
go

如果SQL Server 2012,请修改下面两个位置的代码。在SQL Server 2012,建议在使用throw来代替raiserror。

解密方法
解密过程,最重要采用异或方法:
[字符1]经过函数 fn_x(x)加密变成[加密后字符1],如果我们已知[加密后字符1],反过来查[字符1],可以这样:
[字符1] = [字符2] ^ fn_x([字符2]) ^ [加密后字符1]
这里我列举一个简单的例子:
复制代码 代码如下:www.mb5u.com

--创建加密函数(fn_x)
if object_id('fn_x') is not null drop function fn_x
go
create function fn_x
(
@x nchar(1)
)returns nchar(1)
as
begin
return(nchar((65535-unicode(@x))))
end
go
declare @nchar_1_encrypt nchar(1),@nchar_2 nchar(1)
--对字符'A'进行加密,存入变量@nchar_1_encrypt
set @nchar_1_encrypt=dbo.fn_x(N'A')
--參考的字符@nchar_2
set @nchar_2='x'
--算出@nchar_1_encrypt 加密前的字符
select nchar(unicode(@nchar_2)^unicode(dbo.fn_x(@nchar_2))^unicode(@nchar_1_encrypt)) as [@nchar_1]
/*
@nchar_1
--------------------
A
*/

[注]: 从SQL Server 2000至 SQL Server 2012 采用异或方法都可以解密
用于解密的存储过程(sp_DecryptObject):
复制代码 代码如下:www.mb5u.com

Use master
Go
if object_ID('[sp_DecryptObject]') is not null
Drop Procedure [sp_DecryptObject]
Go
create procedure sp_DecryptObject
(
@Object sysname, --要解密的对象名:函数,存储过程,视图或触发器
@MaxLength int=4000 --评估内容的长度
)
as
set nocount on
/* 1. 解密 */
if not exists(select 1 from sys.objects a where a.object_id=object_id(@Object) And a.type in('P','V','TR','FN','IF','TF'))
begin
--SQL Server 2008
raiserror 50001 N'无效的对象!要解密的对象必须是函数,存储过程,视图或触发器。'
--SQL Server 2012
--throw 50001, N'无效的对象!要解密的对象必须是函数,存储过程,视图或触发器。',1
return
end
if exists(select 1 from sys.sql_modules a where a.object_id=object_id(@Object) and a.definition is not null)
begin
--SQL Server 2008
raiserror 50001 N'对象没有加密!'
--SQL Server 2012
--throw 50001, N'无效的对象!要解密的对象必须是函数,存储过程,视图或触发器。',1
return
end
declare @sql nvarchar(max) --解密出来的SQL语句
,@imageval nvarchar(max) --加密字符串
,@tmpStr nvarchar(max) --临时SQL语句
,@tmpStr_imageval nvarchar(max) --临时SQL语句(加密后)
,@type char(2) --对象类型('P','V','TR','FN','IF','TF')
,@objectID int --对象ID
,@i int --While循环使用
,@Oject1 nvarchar(1000)
set @objectID=object_id(@Object)
set @type=(select a.type from sys.objects a where a.object_id=@objectID)
declare @Space4000 nchar(4000)
set @Space4000=replicate('-',4000)
/*
@tmpStr 会构造下面的SQL语句
-------------------------------------------------------------------------------
alter trigger Tr_Name on Table_Name with encryption for update as return /**/
alter proc Proc_Name with encryption as select 1 as col /**/
alter view View_Name with encryption as select 1 as col /**/
alter function Fn_Name() returns int with encryption as begin return(0) end/**/
*/
set @Oject1=quotename(object_schema_name(@objectID))+'.'+quotename(@Object)
set @tmpStr=
case
when @type ='P ' then N'Alter Procedure '+@Oject1+' with encryption as select 1 as column1 '
when @type ='V ' then N'Alter View '+@Oject1+' with encryption as select 1 as column1 '
when @type ='FN' then N'Alter Function '+@Oject1+'() returns int with encryption as begin return(0) end '
when @type ='IF' then N'Alter Function '+@Oject1+'() returns table with encryption as return(Select a.name from sys.types a) '
when @type ='TF' then N'Alter Function '+@Oject1+'() returns @t table(name nvarchar(50)) with encryption as begin return end '
else 'Alter Trigger '+@Oject1+'on '+quotename(object_schema_name(@objectID))+'.'+(select Top(1) quotename(object_name(parent_id)) from sys.triggers a where a.object_id=@objectID)+' with encryption for update as return '
end
set @tmpStr=@tmpStr+'/*'+@Space4000
set @i=0
while @i < (ceiling(@MaxLength*1.0/4000)-1)
begin
set @tmpStr=@tmpStr+ @Space4000
Set @i=@i+1
end
set @tmpStr=@tmpStr+'*/'
------------
set @imageval =(select top(1) a.imageval from sys.sysobjvalues a where a.objid=@objectID and a.valclass=1)
begin tran
exec(@tmpStr)
set @tmpStr_imageval =(select top(1) a.imageval from sys.sysobjvalues a where a.objid=@objectID and a.valclass=1)
rollback tran
-------------
set @tmpStr=stuff(@tmpStr,1,5,'create')
set @sql=''
set @i=1
while @i<= (datalength(@imageval)/2)
begin
set @sql=@sql+isnull(nchar(unicode(substring(@tmpStr,@i,1)) ^ unicode(substring(@tmpStr_imageval,@i,1))^unicode(substring(@imageval,@i,1)) ),'')
Set @i+=1
end
/* 2. 列印 */
declare @patindex int
while @sql>''
begin
set @patindex=patindex('%'+char(13)+char(10)+'%',@sql)
if @patindex >0
begin
print substring(@sql,1,@patindex-1)
set @sql=stuff(@sql,1,@patindex+1,'')
end
else
begin
set @patindex=patindex('%'+char(13)+'%',@sql)
if @patindex >0
begin
print substring(@sql,1,@patindex-1)
set @sql=stuff(@sql,1,@patindex,'')
end
else
begin
set @patindex=patindex('%'+char(10)+'%',@sql)
if @patindex >0
begin
print substring(@sql,1,@patindex-1)
set @sql=stuff(@sql,1,@patindex,'')
end
else
begin
print @sql
set @sql=''
end
end
end
end
Go
exec sp_ms_marksystemobject 'sp_DecryptObject' --标识为系统对象
go

如果SQL Server 2012,请修改下面两个位置的代码。方法类似于前面的加密过程:

搭建测试环境
--------------------------------------------------------------------------------
在一个测试环境中(DB: Test),先执行上面的加密存储过程(sp_EncryptObject)和解密存储过程(sp_EncryptObject);再创建两个表:TableA & TableB
复制代码 代码如下:www.mb5u.com

use test
go
--创建表: TableA & TableB
if object_id('myTableA') is not null drop table myTableA
if object_id('myTableB') is not null drop table myTableB
go
create table myTableA (ID int identity,data nvarchar(50),constraint PK_myTableA primary key(ID))
create table myTableB (ID int ,data nvarchar(50),constraint PK_myTableB primary key(ID))
go

接下来,我们要创建6个未加密的对象(对象类型包含 'P','V','TR','FN','IF','TF'):
1.视图(myView):
复制代码 代码如下:www.mb5u.com

if object_id('myView') is not null drop view myView
go
create view myView
As
select * from TableA;
go

2.触发器(MyTrigger):
复制代码 代码如下:www.mb5u.com

if object_id('MyTrigger') is not null drop Trigger MyTrigger
go
create trigger MyTrigger
on TableA
for update
As
insert into TableB(ID,data) select a.ID,a.Data From Inserted a
go

3.存储过程(MyProc):
复制代码 代码如下:www.mb5u.com

if object_id('MyProc') is not null drop proc MyProc
go
create proc MyProc
(
@data nvarchar(50)
)
As
insert into TableA(data) values(@data)
go

4.用户定义表值函数(TF)(MyFunction_TF):
复制代码 代码如下:www.mb5u.com

if object_id('MyFunction_TF') is not null drop function MyFunction_TF
go
create function MyFunction_TF
(
)
returns @t table
(
id int,
data nvarchar(50)
)
As
begin
insert @t(id,data) select id,data from TableA
return
end
go

5.内联表值函数(IF) (MyFunction_IF):
复制代码 代码如下:www.mb5u.com

if object_id('MyFunction_IF') is not null drop function MyFunction_IF
go
create function MyFunction_IF
(
)
returns table
As
return(select top(3) id, data from TableA order by id desc)
go

6.标量函数(FN)(MyFunction_FN):
复制代码 代码如下:www.mb5u.com

if object_id('MyFunction_FN') is not null drop function MyFunction_FN
go
create function MyFunction_FN
(
)
returns nvarchar(50)
As
begin
return(select top(1) data from TableA order by id desc)
end
go

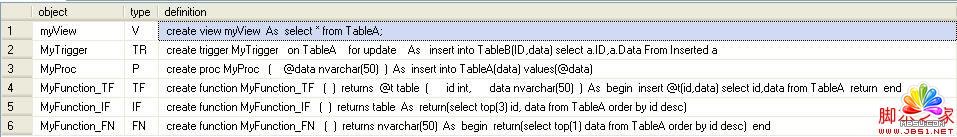

当执行完了上面的1-6步骤的脚本,我们通过查询系统视图sys.sql_modules,可以看到未加密前的定义信息:
复制代码 代码如下:www.mb5u.com

select b.name as object,b.type,a.definition
from sys.sql_modules a
inner join sys.objects b on b.object_id=a.object_id
where b.create_date>=convert(date,getdate())
order by b.object_id


加密测试
--------------------------------------------------------------------------------

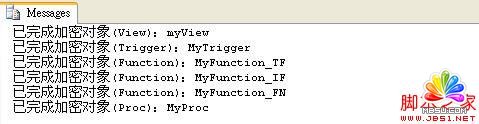

下面我就通过调用加密存储过程(sp_EncryptObject),一次性对它们进行加密:
复制代码 代码如下:www.mb5u.com

use test
go
exec sp_EncryptObject 'all'
go

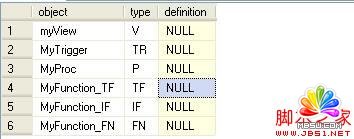

当我们再查回系统视图sys.sql_modules,会发现definition列返回的是null值,说明定义内容已经给加密:


解密测试
--------------------------------------------------------------------------------

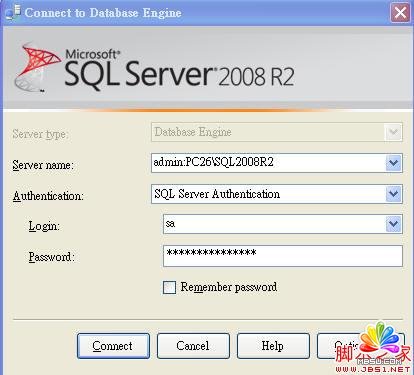

解密过程,必须在DAC连接SQL Server,我们这里例子是从 SSMS(SQL Server Management Studio) 查询编辑器启动 DAC,如图:

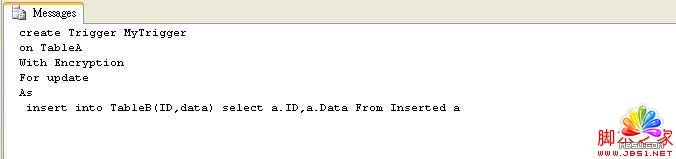

解密存储过程(sp_DecryptObject),只能一次对一个存储过程、函数、视图或触发器,进行解密:
复制代码 代码如下:www.mb5u.com

use test
go
exec sp_DecryptObject MyTrigger
go


当定义内容长度超过4000,我们可以指定@MaxLength的值,如:
复制代码 代码如下:www.mb5u.com

exec sp_DecryptObject fn_My,20000
go

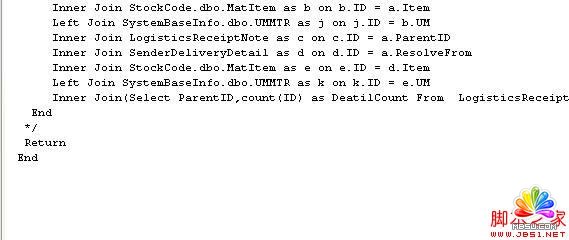

这里(fn_My)是一个函数,定义内容超过了8000:

... ...


小结
--------------------------------------------------------------------------------
虽然,上面的脚本,我已经在SQL Server 2008 R2 和SQL Server 2012测试过,但无法避免一些未知错误 。如果你自己在测试上面的脚本,请不要在生产环境上。如果你在应用过程,碰到有什么问题或有什么意见和建议可以发email联系我或跟帖,在此非常感谢!
